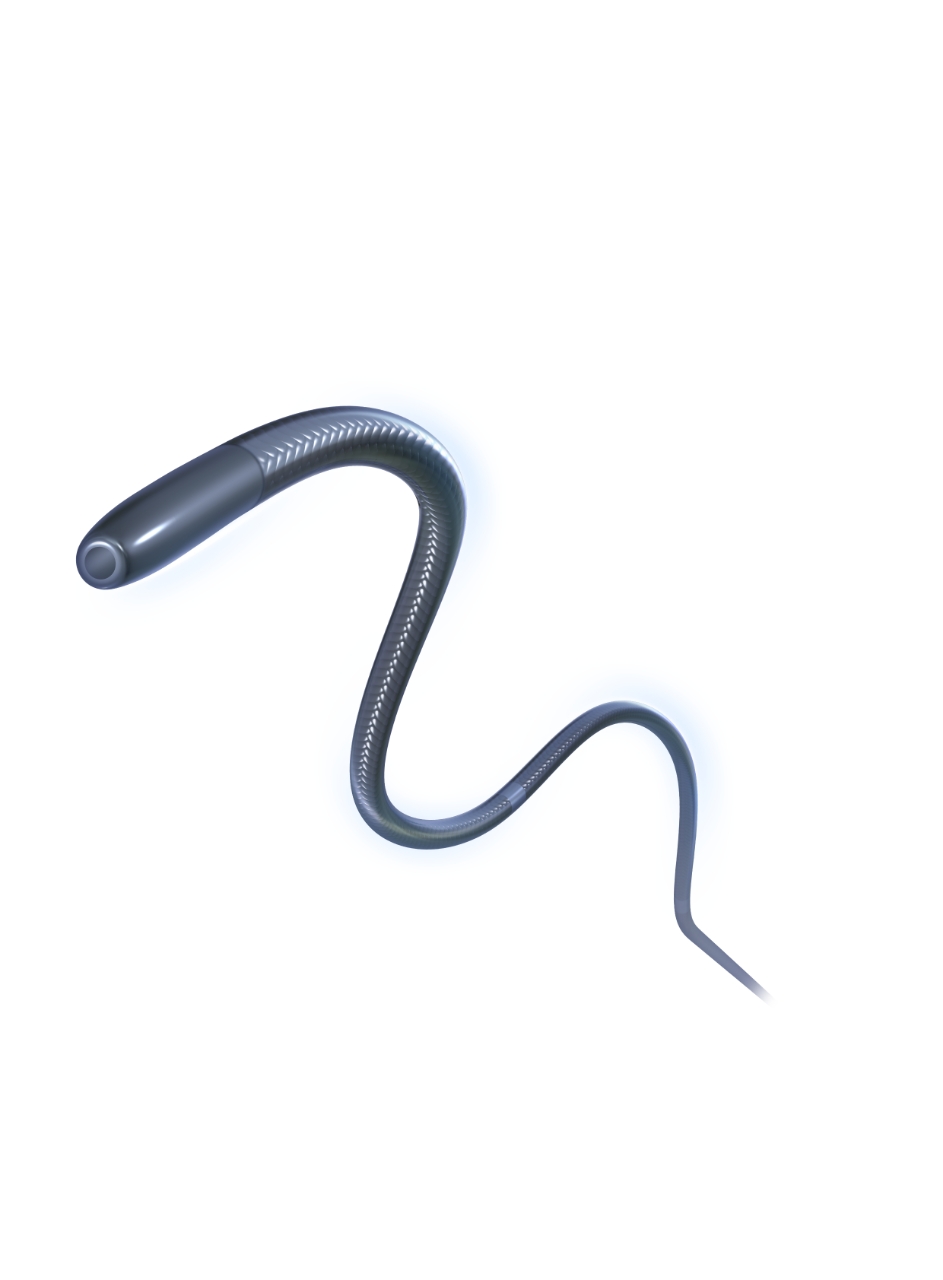

Peripheral Support Catheter

The Peripheral Support Catheter is intended for use in small vessel or super selective anatomy for diagnostic and interventional procedures, including peripheral use

Freedom follows the “form” and flows freely from the “heart”

Smooth and Fast Tracking

• 0.024″(2.0F) tapering tip O.D
• Inner PTFE layer, increased lubricity for fast tracking
• 60cm extra-long hydrophilic coating

Smooth Pushability and Responsive Torquability

• Unique “Fish-Skin” pattern design in proximal shaft

· decreases the contact with vessel wall

· minimizes the intra-vascular friction

· maximizes pushability

• 1:1 torquability

Distal Shaft: Smooth multi-gradient transition improves integrity and flexibility

Proximal Shaft: Stainless-steel braiding-reinforce structure provides strong lumen support and pushability

Proximal to distal stiffness from 75D to 35D provides excellent trackability and crossability
